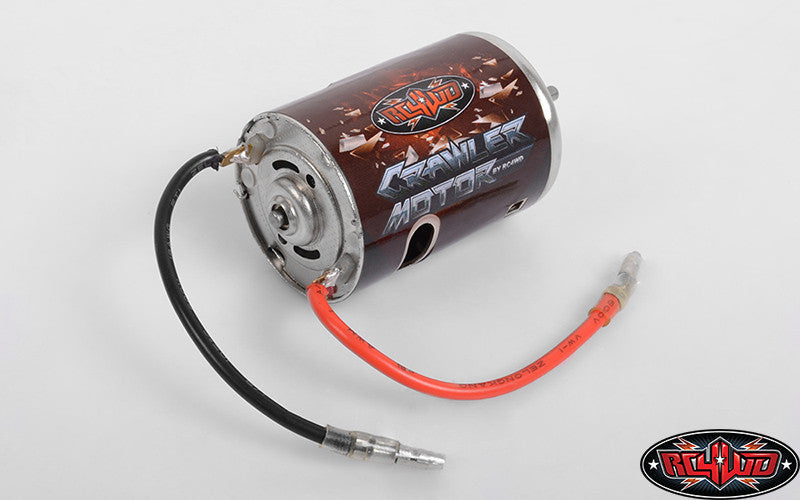

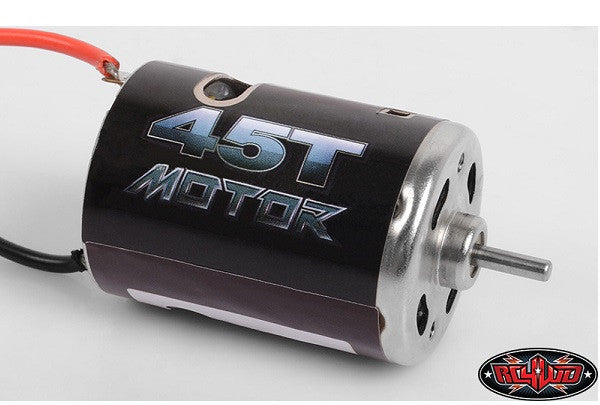

(1) RC4WD 540 Crawler Brushed Motor (45T)

• Custom made 540 Steel Case
• Chrome Plated Case
• Build in capacitor for minimizing glith
• High torque magnet and rotor
• Small footprint (50mm long)
• Tuned for Rock Climbing and Scale Driving
• Polished Bushings

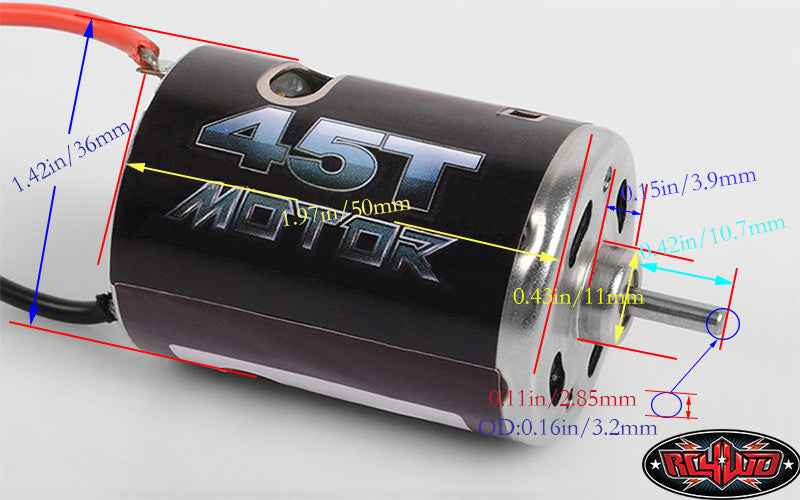

• Body OD: 1.39in / 35.5mm
• Output Shaft Length: 0.43in / 11mm
• Output Shaft: 0.12in / 3.1mm
• Min and Max Voltage Range: 2.4V-30V

Performance Specs:

• (At no load) RPM @ 7.2V : 9500 (10%), .95Amp Current
• (Max Efficiency) RPM @ 7.2V : 8100 (10%), 4.29Amp Current
• Designed oprating temperature range: -30C to +80C
• Motor end play : .50mm max
• Noise Level: < 60db

What's Included:

• 1x RC4WD 540 Crawler Brushed Motor (45T)
