Details

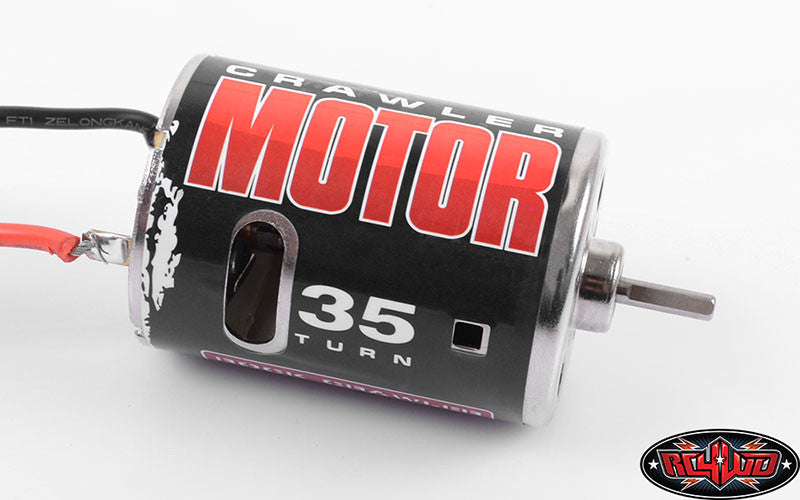

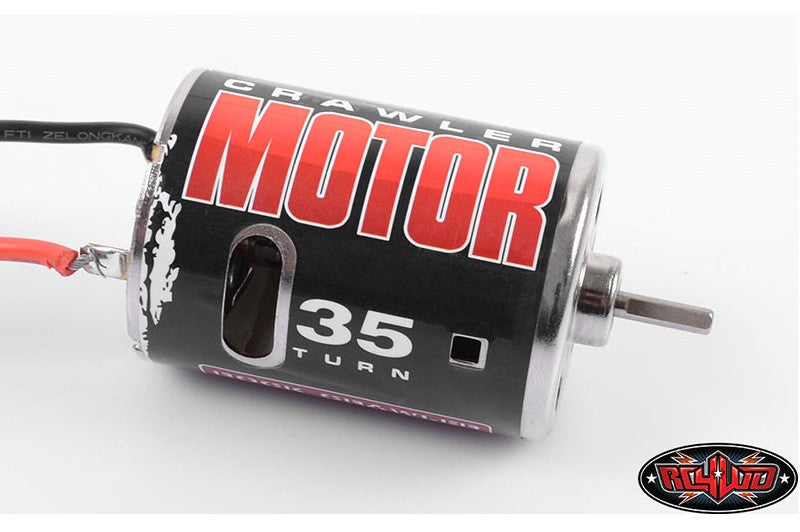

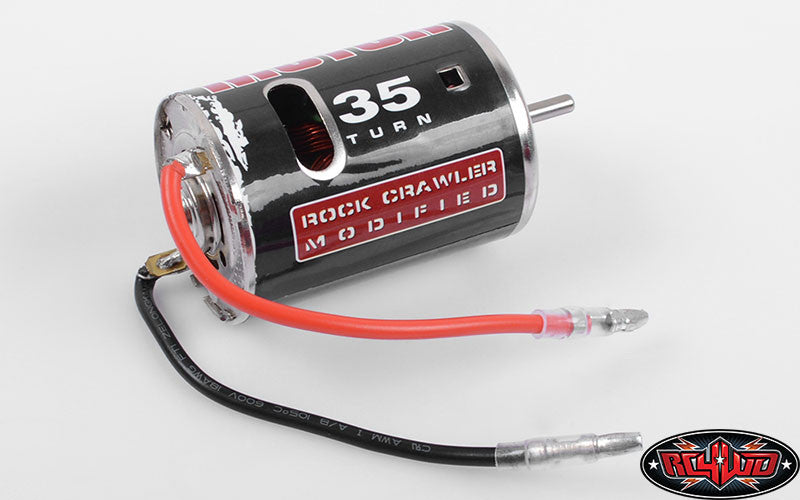

RC4WD 540 Crawler Brushed Motor 35T

£15.95

(1) RC4WD 540 Crawler Brushed Motor (35T)

Custom made to fit all popular Truck such as Bully, AX10, Trail Finder!

    Specifications:
    • Custom made 540 Steel case
    • Chrome plated case
    • Build in capacitor for minimizing glitches
    • High torque magnet and rotor
    • Small footprint (50mm long)
    • Tuned for Rock Climbing and Scale Driving
    • Polished Bushings
    • Body OD: 1.39in / 35.5mm
    • Output Shaft Length: 0.43in / 11mm
    • Output Shaft: 0.12in / 3.1mm
    • Min and Max Voltage Range: 2.4V-30V

    Performance Specs:

    • (At no load) RPM @ 7.2V : 12500 (?10%), 1.25Amp Current
    • (Max Efficiency) RPM @ 7.2V : 10400 (?10%), 4.62Amp Current
    • Designed operating temperature range: -30?C to +80?C
    • Motor end play : .50mm max
    • Noise level: < 60db

    What's Included:

    • 1x RC4WD 540 Crawler Brushed Motor (35T)

    Optional Parts:

    • 540 Crawler Brushed Motor 27T (Z-E0067)
    • 540 Crawler Brushed Motor 20T (Z-E0065)
