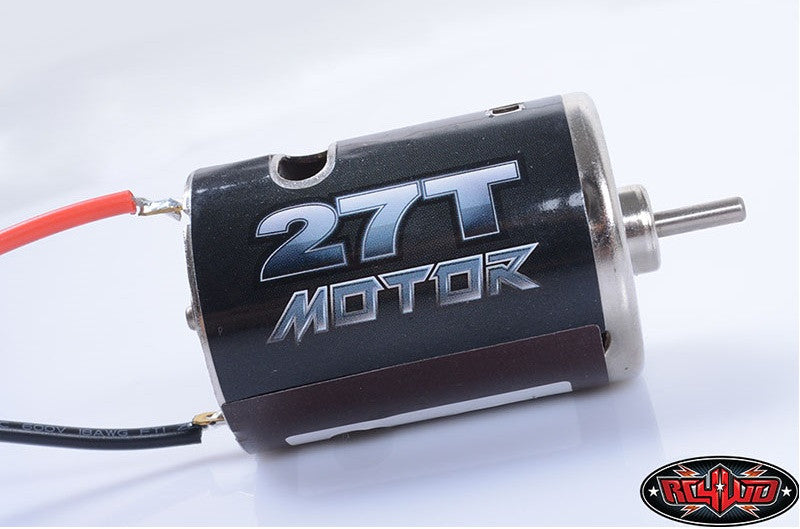

RC4WD 540 Crawler Brushed Motor 27T
£15.95
540 Crawler Brushed Motor 27T
Standard size 540 Brushed Motor that can be used in all popular RC truck and cars.
Specifications:
- Custom Made 540 Steel Case
- Chrome Plated Case
- Build in Capacitor for Minimizing Glitch
- High Torque Magnet and Rotor
- Small Footprint (50mm long)
- Tuned for Rock Climbing and Scale Driving
- Polished Bushings
- Body OD: 1.39in / 35.5mm
- Length: 1.96in / 50mm
- Output Shaft Length: 0.43in / 11mm
- Output Shaft OD: 0.12in / 3.1mm
- Min and Max Voltage Range: 2.4V-30V
- Weight: 5.57oz / 158g
Performance Specs:
- (At No Load) RPM @ 7.2V : 15000 +10% , 1.2Amp Current
- (Rated load) RPM @ 7.2V : 13600 +10%, 5.02Amp Current
- Designed Operating Temperature Range: -10°C to +60°C
- Shaft end play: 0.1mm to 0.5mm
- Noise Level: < 78DB
What's Included:
- 1x 540 Crawler Brushed Motor 27T
Optional Parts:
