Details

RC4WD 540 Crawler Brushed Motor 20T

£15.95

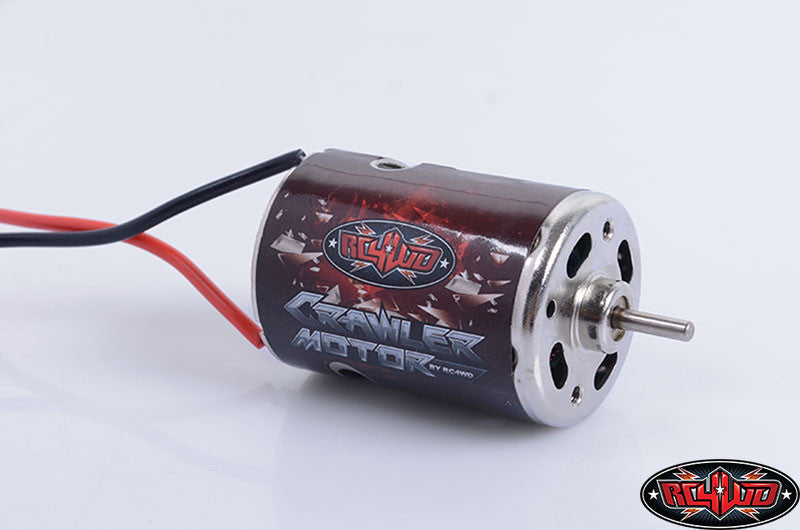

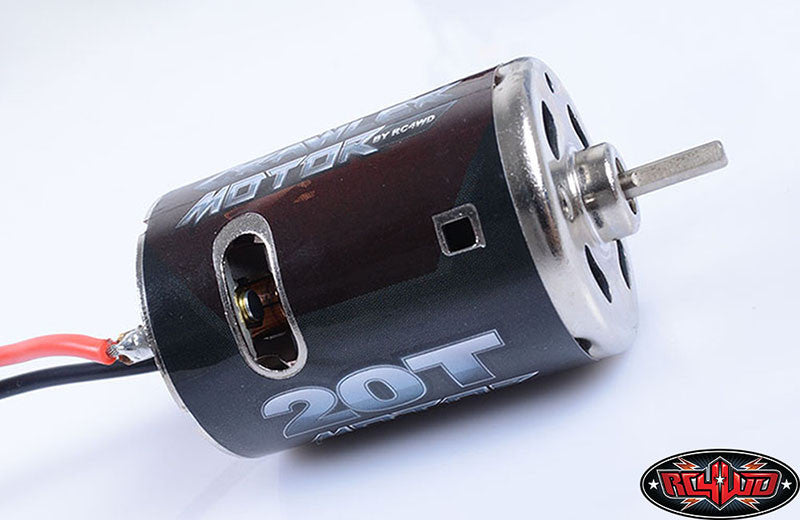

540 Crawler Brushed Motor 20T

http://www.killercase.com/product/motor/Z-E0065/CrawlerMotorLogo-2.png

Standard size 540 Brushed Motor that can be used in all popular RC truck and cars.



Specifications:
  • Custom Made 540 Steel Case
  • Chrome Plated Case
  • Build in Capacitor for Minimizing Glitch
  • High Torque Magnet and Rotor
  • Small Footprint (50mm long)
  • Tuned for Rock Climbing and Scale Driving
  • Polished Bushings
  • Body OD: 1.39in / 35.5mm
  • Length: 1.96in / 50mm

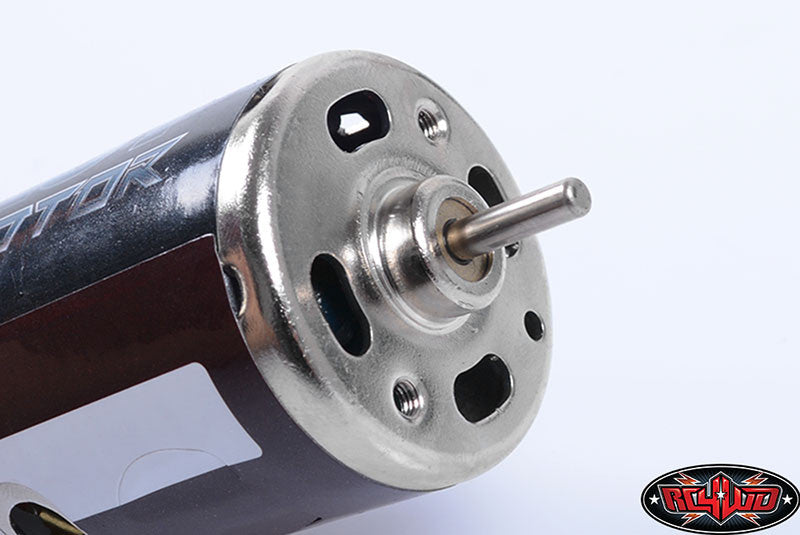

  • Output Shaft Length: 0.43in / 11mm
  • Output Shaft OD: 0.12in / 3.1mm
  • Min and Max Voltage Range: 2.4V-30V
  • Weight: 5.5oz / 156g

Performance Specs:
  • (At No Load) RPM @ 7.2V : 20000 +10% , 2Amp Current
  • (Rated load) RPM @ 7.2V : 18400 +10%, 7.92Amp Current
  • Designed Operating Temperature Range: -10°C to +60°C
  • Shaft end play: 0.1mm to 0.5mm
  • Noise Level: < 78DB





What's Included:

  • 1x 540 Crawler Brushed Motor 20T
