PRODUCT INFORMATION:

• This is a Servo Winch Mount Kit for the BRX01 AWB and BRX01 chassis.

  This kit includes a complete setup for running an internal servo winch for the BRX01 AWB and BRX01.

  A CNC aluminum winch mount secures a standard servo winch on the BRX01 AWB and BRX01 chassis.

  A switch and switch retainer together are explicitly designed for use with the Boom Racing Muscle Winch. The combined unit features an easy-access knob to engage the push-button of the Muscle Winch.

  A front-mounted, hardened steel router unit features two pulleys to guide the winch line and facilitate a change in direction. A routing tube and a routing tube retainer are included to guide the winch line from the Muscle Winch to the router unit for smooth operations.

  If using with BRX01, an optional LC70 CNC hardbody mount (#BRLC7098) is required to maintain the quick-release feature and to allow the winch line to pass directly through.

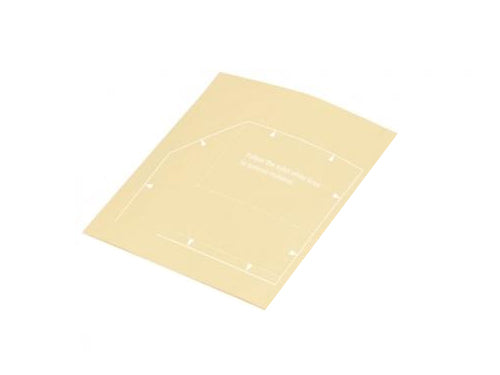

  If you have the LC70 interior installed, a cut-out guideline is included. Place the guideline onto the interior (as shown in Step 6 in the manual) and follow the solid white lines to remove the material.

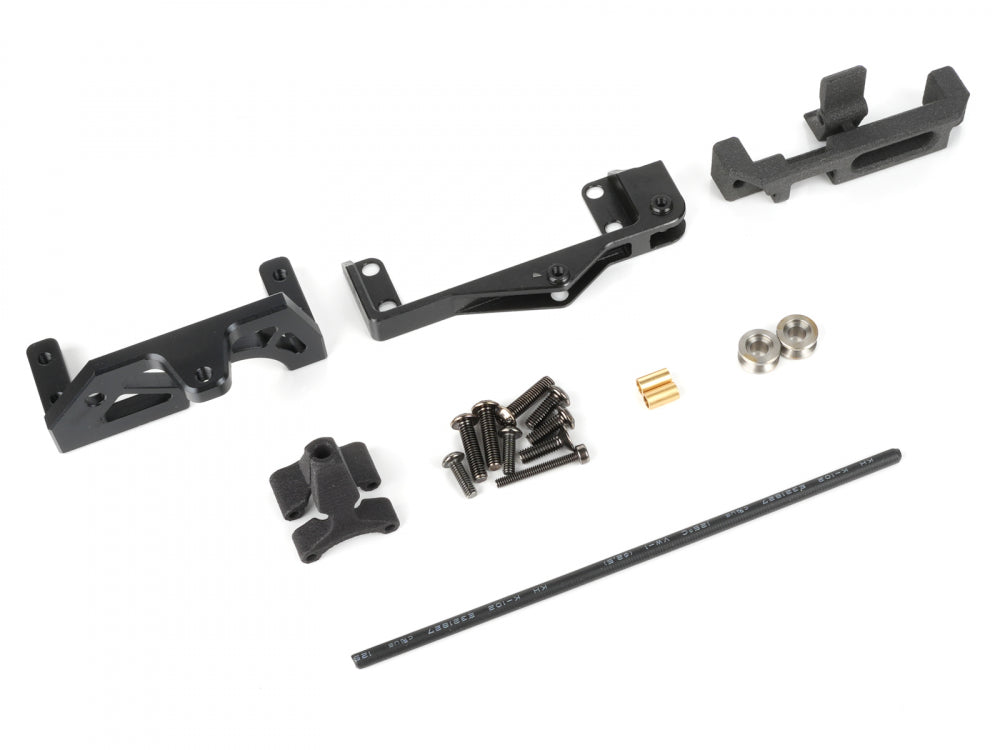

  Includes:

  • 1x Aluminum Winch Mount
  • 1x Switch Retainer
  • 1x Switch
  • 1x Routing Tube Retainer
  • 1x Hardened Steel Router
  • 2x Stainless Steel Pulley
  • 2x Pivot Tube
  • 1x Routing Tube
  • 1x M2x16 SC Screw #BRASCH2016
  • 2x M2.5x8 RS Screw #BRASCH2508
  • 2x M3x8 RS Screw #BRASCH3008
  • 4x M3x12 RS Screw #BRASCH3012
  • 1x Interior Cut-Out Guideline for BRX01 + Killerbody LC70 interior

  Optional Part:

  • If using with BRX01, Pass-Thru Aluminum Front Body Mount for LC70 #BRLC7098

  Compatibility:

  • This Servo Winch Mount Kit is designed for the BRX01 AWB using the Muscle Winch. The servo winch Mount will fit other standard servos. It is intended to be installed on the left-hand side of the BRX01 AWB and BRX01 chassis. The Switch and Switch Retainer are designed explicitly for the Muscle Winch.

  Fits:

  • BRX01 AWB
  • BRX01
• Package total weight: 55.00 grams (incl. packaging)
• Factory description: Boom Racing BRX01 AWB Servo Winch Mount Kit for BRX01 AWB & BRX01
• Manufactured by Boom Racing
• Manufacturer number: BRLC70227
