PRODUCT INFORMATION:

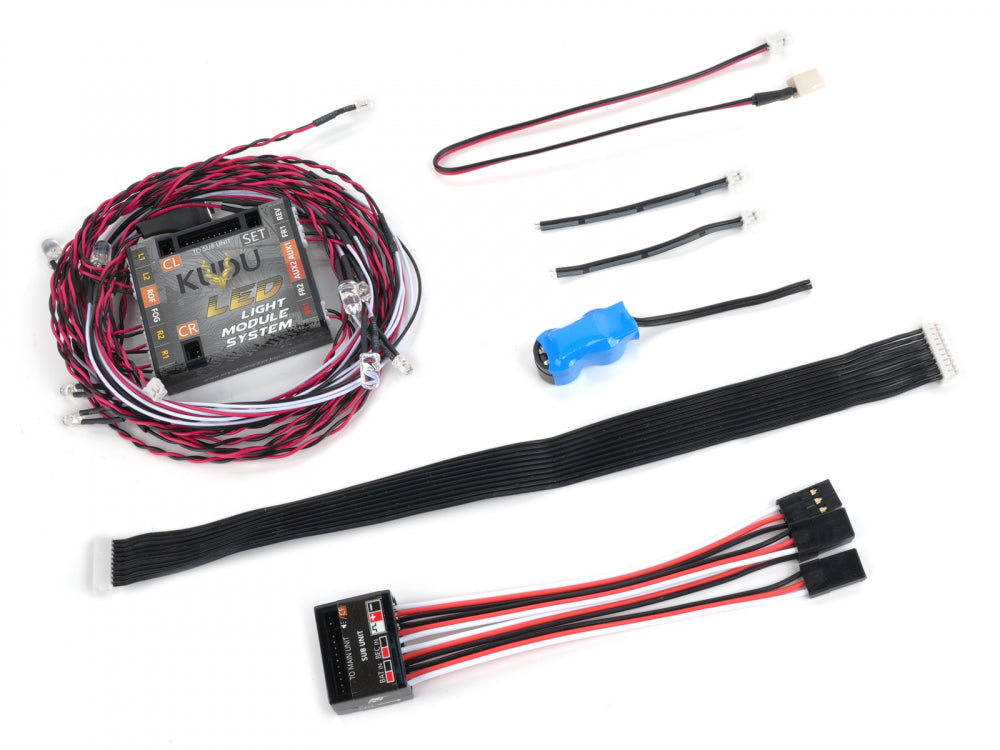

• This is a complete LED light system for the Boom Racing BRX01 Toyota LC70. This set includes a main LED light unit, a sub unit, a main connecting cable connecting the main and sub units, a set switch cable, a battery cable (2s), a buzzer (for reverse and low voltage detection), eight LED light cables, and a user manual.

  The module has a default setting already installed. This is a highly adjustable LED light system, different lighting options can be accessed through the setup mode.

  Features:

  • Low-voltage detection capability
  • Includes one high-voltage module plug rated 7.4v-12.6v (e.g. for roof light)
  • Six high-power light plugs (up to 16 LEDs each) with power settings
  • Blinkers can be turned on and off, or use a toggle switch to operate
  • Brake light includes standard, drag, and crawler modes
  • Blinker and Hazard mode settings with flash rate options
  • Reverse beeper included
  • Ten flash mode toggle switch options
  • Auto hazard start time setting
  • Channel 2 and 4 polarity setup

  Included LED Lights:

  • 2x Left & Right - 3 + 5mm Yellow (2x parallel)
  • 2x Left & Right - 3mm Yellow (1x parallel)
  • 1x Front - 5mm Cool White (2x parallel)
  • 1x Fog - 3mm Cool White (2x parallel)
  • 1x Reverse - 3mm Cool White (2x parallel)
  • 1x Brake - 3mm Red (2x parallel)

  Included:

  • 1x Main unit
  • 1x Sub unit
  • 1x Main cable
  • 1x Set switch cable
  • 1x Battery cable (LiPo 2S)
  • 1x Buzzer
  • 1x User manual
  • 2x Spare wire for CL, CR, CF plugs

  Specifications:

  • Input Voltage: 5-7.4V (powered by BEC)
  • Battery Type for Low Voltage Detection: LiPo 2S (user define max 12.6V)
  • Size (LxWxH):
    • Main Unit: 45x41.3x11.7mm
    • Sub Unit: 24.5x18.5x12mm
  • Weight:
    • Main Unit: 14g
    • Sub Unit: 10g

  Fits:

  • LC70 Pickup Hardbody
