PRODUCT INFORMATION:

• BRX01 AWB XL Billet Aluminum Rear Rails (7mm) – Extended Wheelbase Upgrade

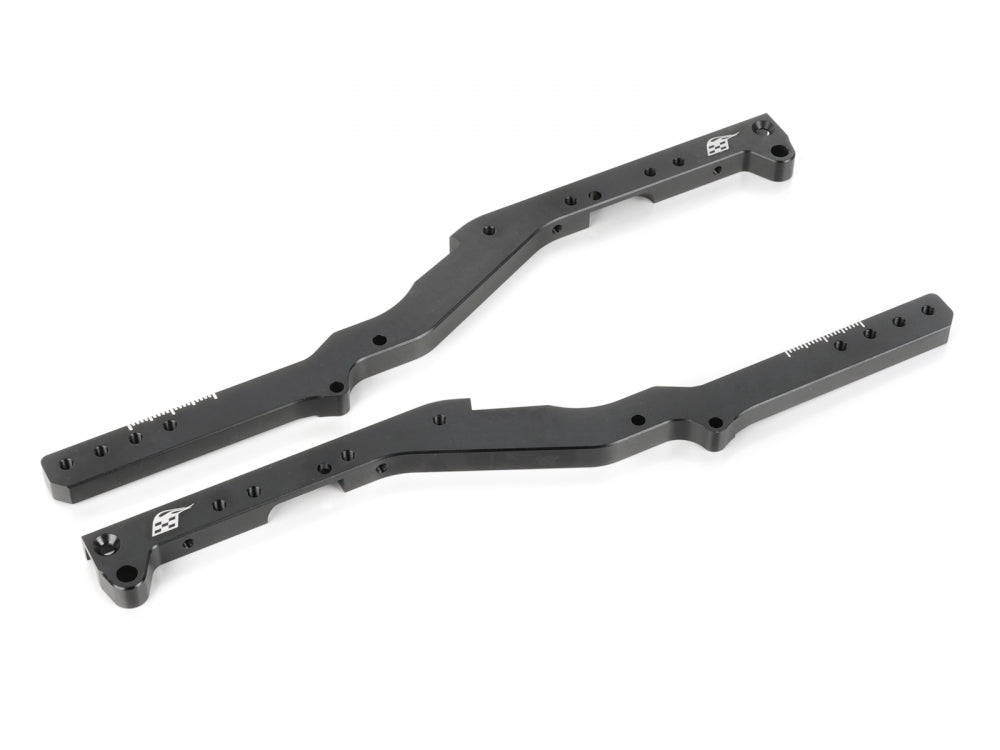

  This is a pair of 7mm thick billet aluminum XL rear chassis rails designed specifically for the BRX01 AWB Adjustable Wheelbase Chassis Kit. These extended rails increase the wheelbase adjustment range from the original 267mm–287mm to a longer 287mm–307mm range.

  Recommended KUDU shaft sizes for the BRX01 AWB based on different wheelbase lengths:

  • Wheelbase 267 to 282mm: 84-99mm #BRKD003-94 (stock rear center driveshaft)
  • Wheelbase 281mm to 296mm: 98-113mm #BRKD003-107
  • Wheelbase 293 to 307mm: 110-135mm#BRKD003-119


  Note: Hardware is not included. Please reuse the original hardware from your BRX01 AWB kit.

• Package total weight: 88.00 grams (incl. packaging)
• Factory description: Boom Racing BRX01 AWB AWB Chassis Rear Rail XL (287-307MM) L/R
• Manufactured by Boom Racing
• Manufacturer number: BRLC70213
